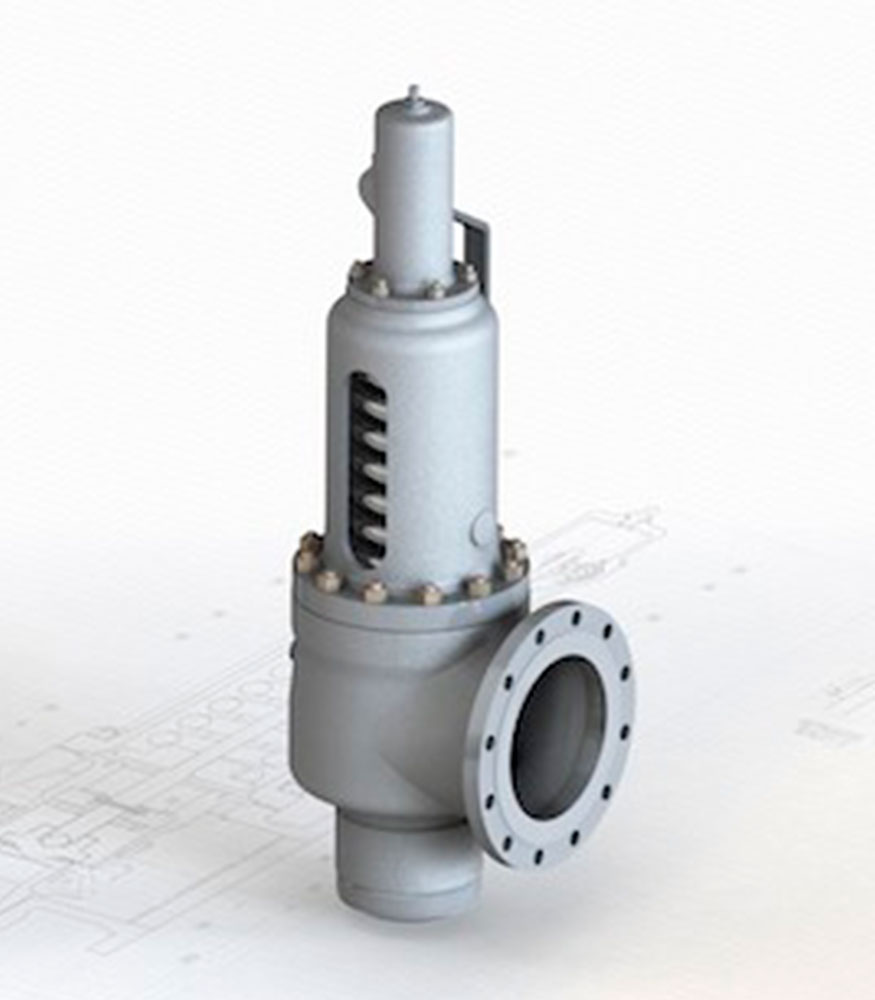

SMS-7100 is a high capacity safety valve specifically designed for steam service. These safety valves are usually installed on steam power boiler for overpressure protection.

The double rings design allows for relieving capacity at 3% overpressure and for a precise control of valve closing.

Maintenance resources and repair times are minimized thanks to the superior tightness provided by the specific flexible seat design of the disc.

SMS-7100 safety valves are available either with flanged or welding neck inlet connection.

Main features
Flanged, spring loaded, direct acting, full nozzle safety relief valves for steam service (ASME Sect.I).
Media: steam (suitable also for gas).
Orifices: from “D” to “T”.
Set pressure range: up to 206 bar.
Temperature range: up to 566 °C.
Overpressure: 3% or 0.14 bar.
Blowdown: 4% or 0.28 bar.
Materials: carbon steel, alloy steel and other materials upon request.
Options: lifting lever, test gag, finned bonnet, hardened seat.

Sizes / Pressure Classes
Size inlet & outlet: from NPS 1 to NPS 8 & from NPS 1 1/2 to NPS 12. Rating: up to ASME 2500

Design Codes & Product Standards
EN ISO 4126-1, EN 12516, EN 12952-10, EN 1092, ASME B16.34, ASME B16.5, ASME Sect.I
GOST (Russia), AQSIQ (China), SVDB (Switzerland), Stoomwezen (Holland) CE según PED (Pressure Equipment Directive)
