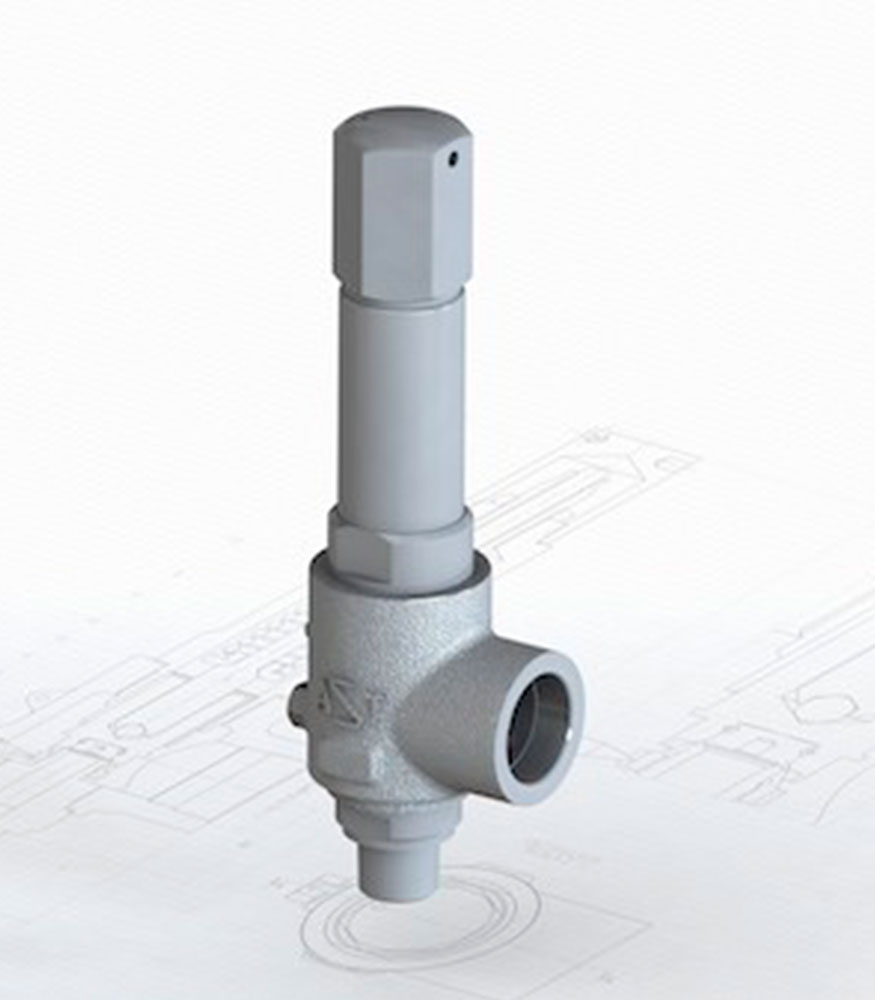

SMFN / SMF / SHL-7000 are spring loaded safety relief valves designed to guarantee reliable and high quality overpressure protection for air, gas, steam, vapor, liquid and two phase applications.

SMFN / SMF / SHL-7000 spring loaded safety valves offer simple and reliable design that guarantees optimum maintenance life cycle costs

Their versatile design includes screwed or socket weld connections.

The high quality level, together with the superior tightness, makes SMFN / SMF / SHL-7000 suitable even for the most critical applications.

Main features
Screwed, spring loaded, direct acting, full nozzle safety relief valves.
Media: gas, steam and liquid.
Orifices: from “B” to “F”.
Set pressure range: from 0.8 bar to 400 bar (for gas), up to 1500 bar for liquid.
Temperature range: from –200 °C to 400 °C.
Overpressure: gas, steam and liquid 10%.
Blowdown: gas and steam 5 to 7%.
Materials: carbon steel, alloy steel, hastelloy, monel and other materials upon request.
Options: bellows, nozzle, lifting lever, test gag, resilient or hardened seat

Sizes / Pressure Classes
Size inlet & outlet: from NPS 1/2 to NPS 1 & from NPS 1 to NPS 1 1/2.
Rating: up to API 6000 or ASME 2500

Design Codes & Product Standards
EN ISO 4126-1, EN 764-7, EN 12516, EN 1092, API 520, API 521, API 527, ASME B16.34, ASME B16.5, ASME Sect.VII
GOST (Russia), AQSIQ (China), SVDB (Switzerland), Stoomwezen (Holland) CE según PED (Pressure Equipment Directive)
