Description

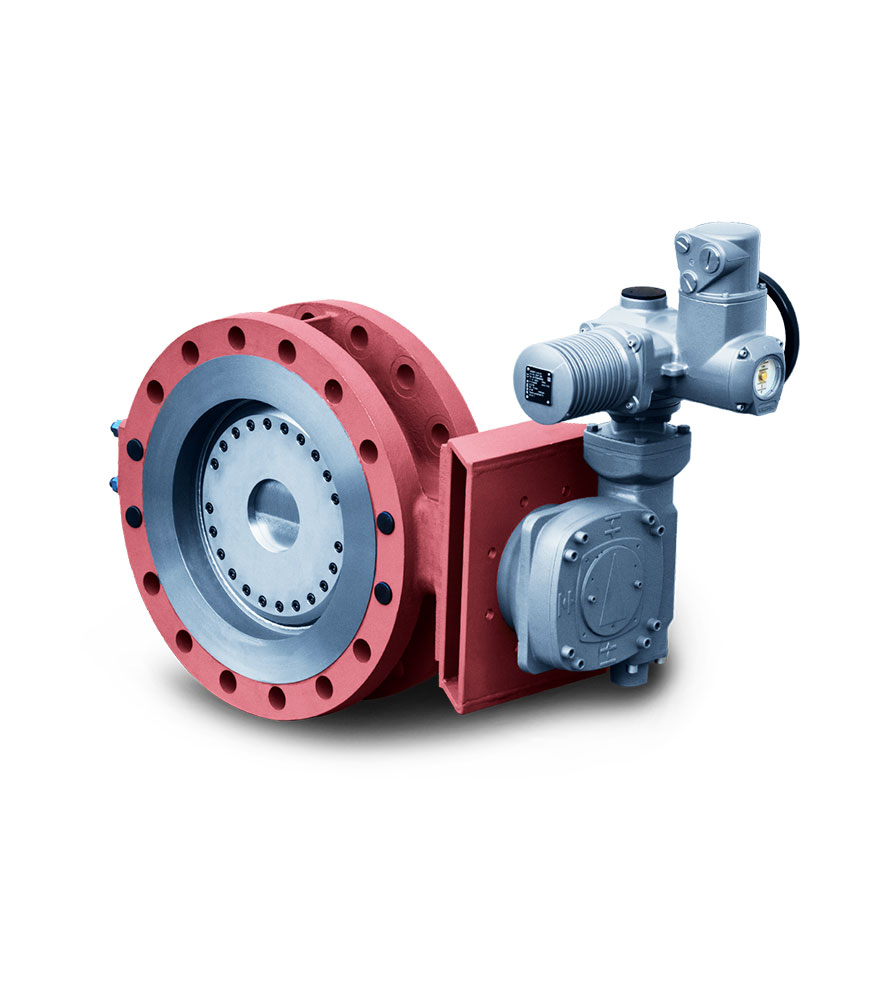

The principle of our valve design is to minimalize the friction between the sealing surfaces during the working cycle of the valve and thus to prolong its lifetime. But the main advantage of this valve is the application of the fully metallic seat instead of graphite or lamellar sealing. This sofisticated solution is mostly demanded in the critical applications whenever high pressure or high temperature are present or whenever long-term tightness, operation realiability are required.

Main features
Four offset quarter-turn design
Metal seated construction (metal/metal seated)
Zero leakage tight shut-off
Full bi-directional tightness
Fire safe

Sizes / Pressure Classes
Size DN65 up to DN2500 (bigger sizes upon request)
Pressure range -1bar (vacuum) up to 160bar
Connection PN6 up to PN160, Class150 up to Class900 (Class1500)
Temperature range -196°C up to +850°C

Design Codes & Product Standards
Design acc to EN593, EN 12516-1, EN 12516-2, ASME, API
End connection acc to EN 1092-1, EN 1759-1, EN 12627, ASME/ANSI
Face to face acc to EN558, DIN, API609, ASME/AISI, BS
Pressure testing acc to EN 12266, API 598 zero leakage, other
Mounting flange for actuator acc to EN ISO 5211
PED 2014/68/EU approved, module B+D, category IV.
TA-Luft
ATEX

Body versions
Wafer or Lug
Double flange
Butt-welded
